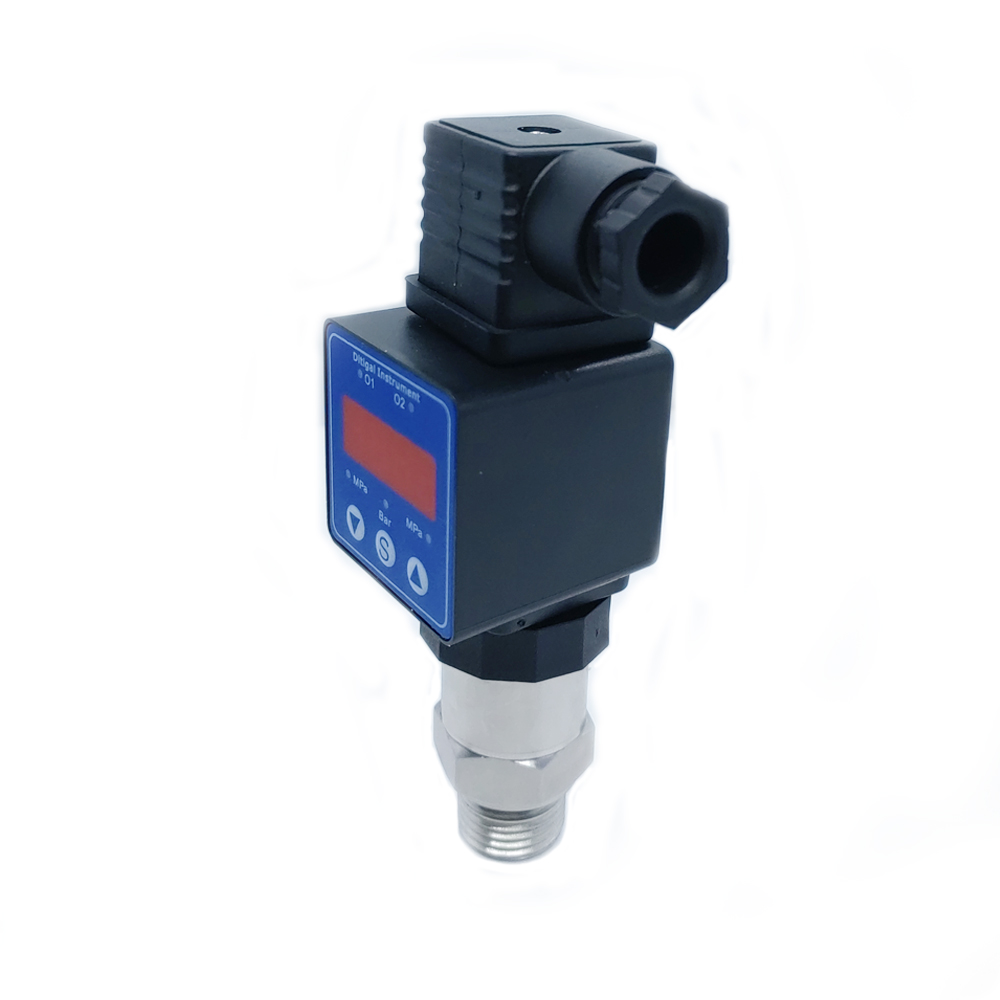

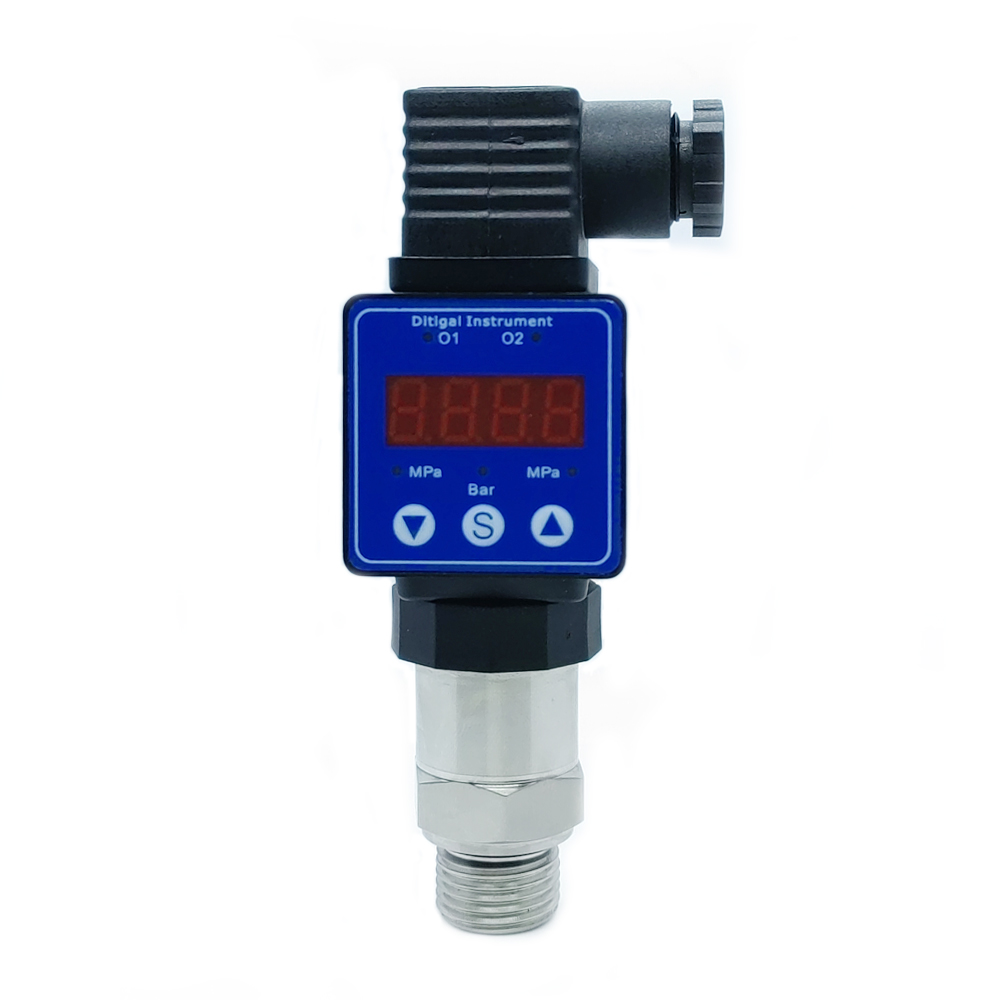

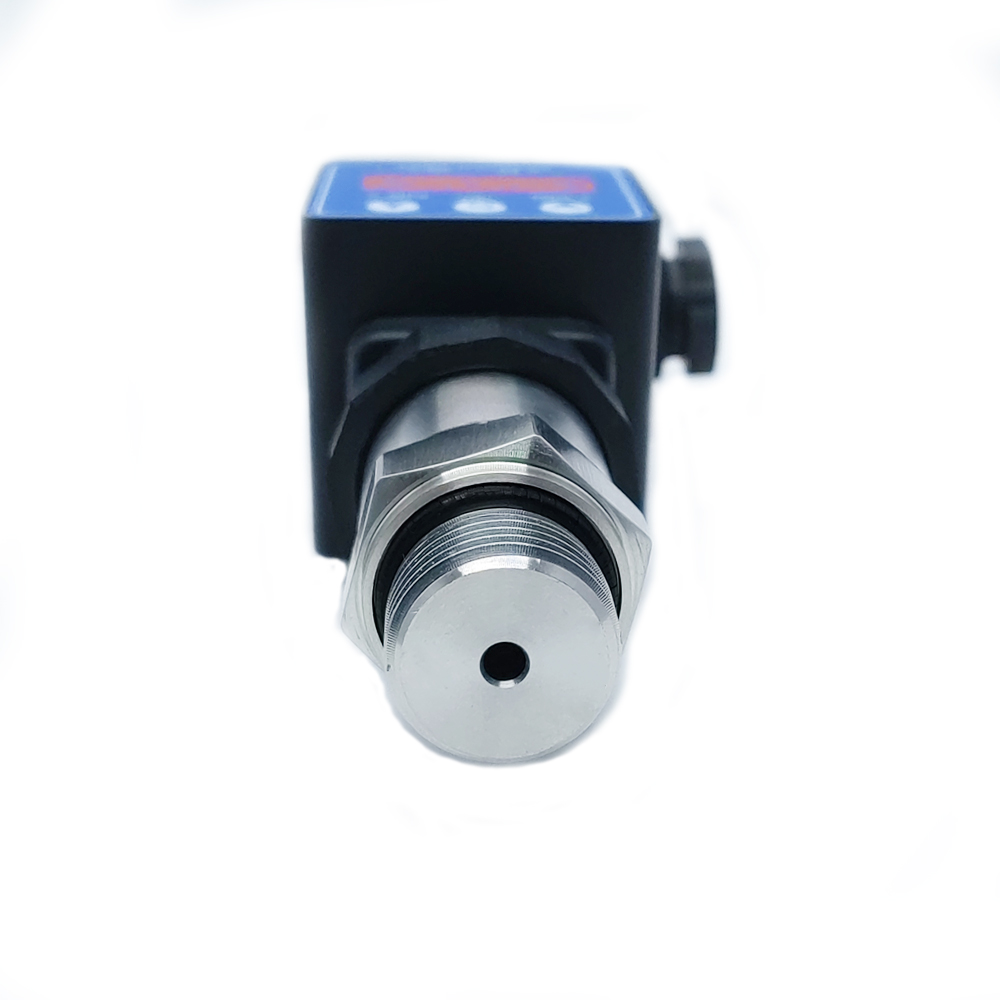

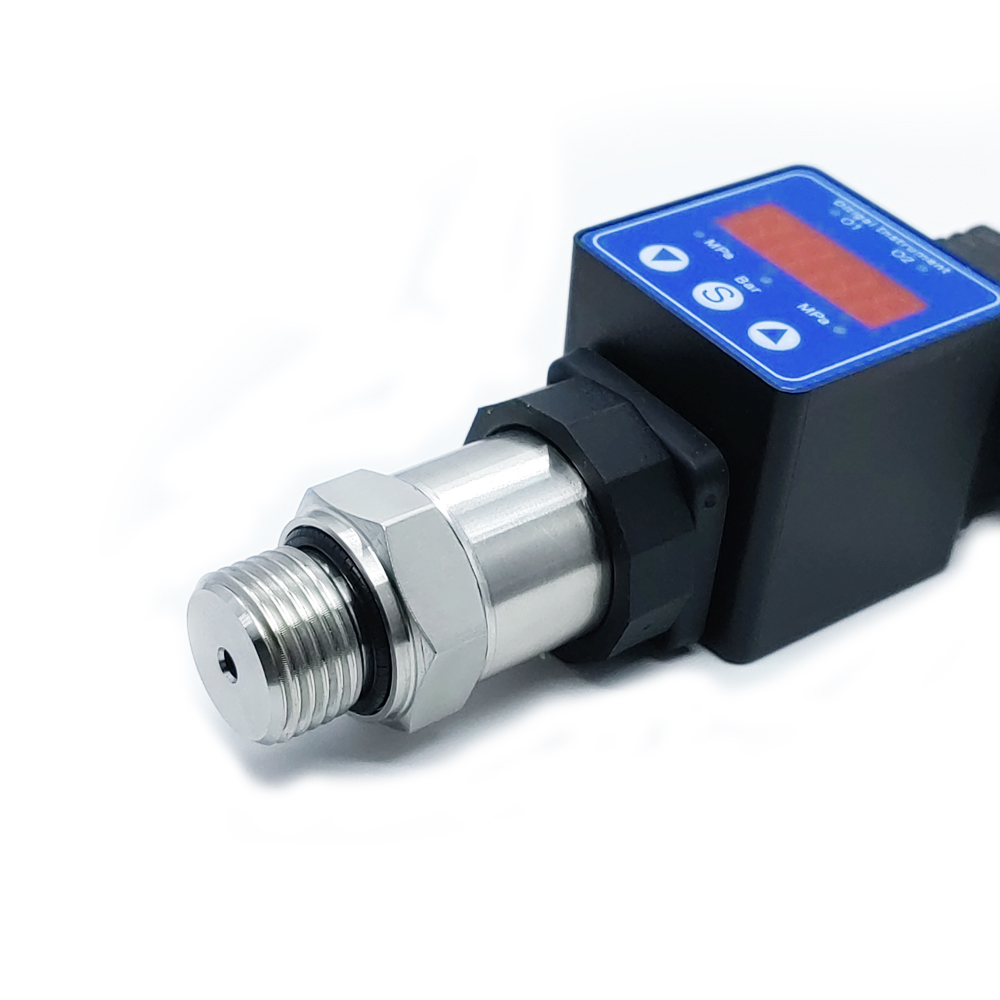

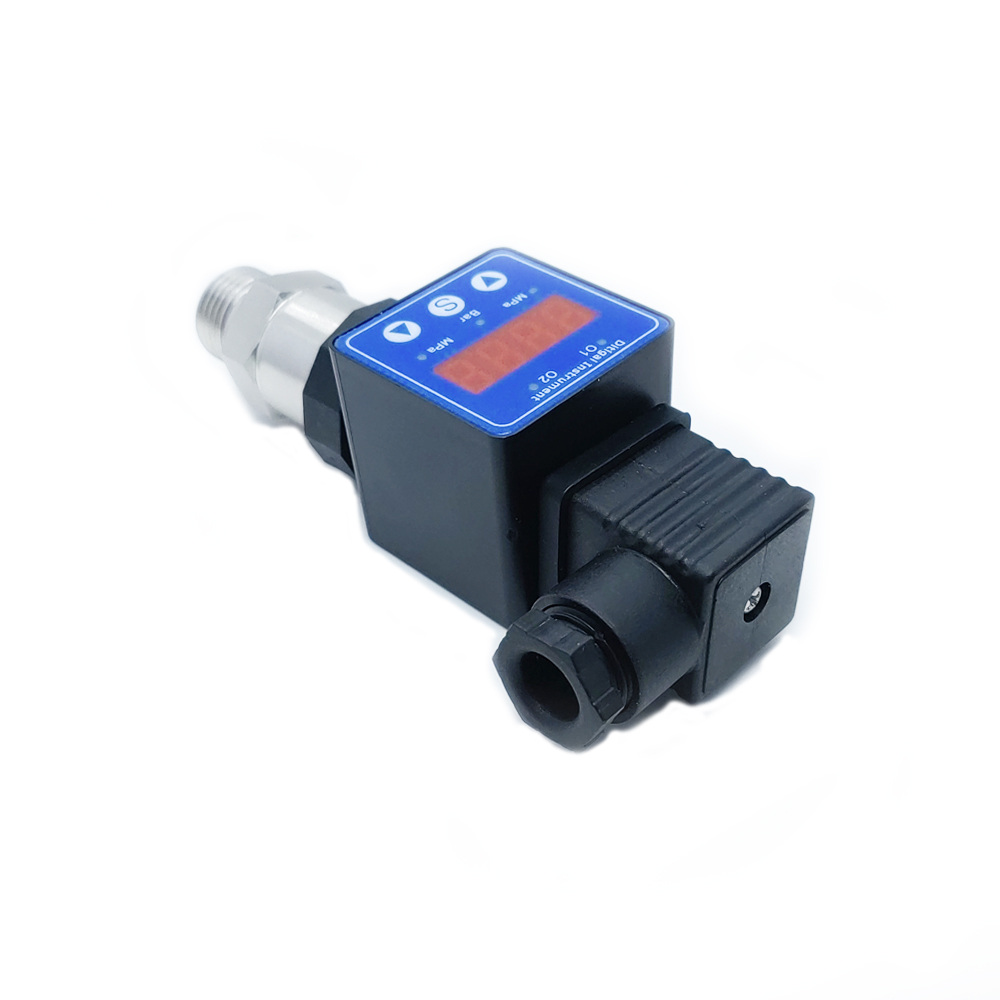

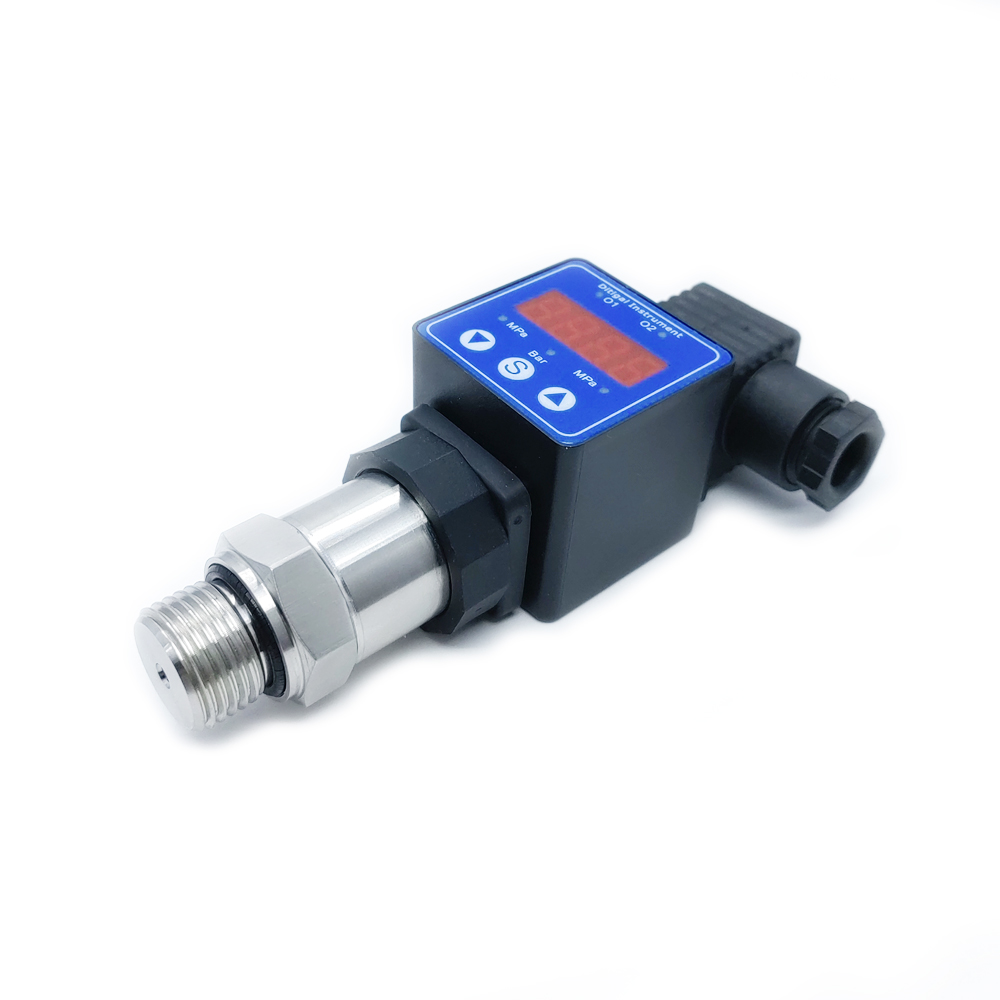

pressure transmitter with LED Display M20*1.5 12-36V 4-20mA 0.5% 0-600bar optional stainless steel pressure transducer sensor
Specifications:
- Supply voltage: 12-36VDC
- Protection class: IP65
- Pressure connection: M20*1.5 or other
- Paired cable: 1m
- Output signal: 4-20mA
- Operating temperature: -40-105℃
- Model Number: XDB305A
- Measuring range: 0-600bar gauge pressure
- Max Measuring Range: 400 Bar & Above
- Housing material: 304 Stainless Steel
- Explosion-proof class: Exia2CT6
- Electromagnetism Compatibility: EN50051-1
- Electrical connection: Hirschman DIN43650A
- Brand Name: XIDIBEI
- Accuracy: ≤±0.5%FS
